Copper flexible refers to a type of electrical conductor that is both malleable and ductile, allowing it to be easily bent or twisted without breaking. This flexibility makes copper flexible conductors well-suited for applications where pliability and adaptability are essential, such as in electrical wiring and connections. The use of copper in flexible configurations ensures efficient current flow, as well as resistance to corrosion and heat. Commonly found in various electrical systems and equipment, copper flexible conductors contribute to the reliability and safety of electrical connections, particularly in situations where a durable and easily maneuverable conductor is required.

Conductor – Bare annealed electrolytic grade copper as per IS:694/ BS 6360.

Insulation –Primary: Virgin grade natural PVC (Type A, C and D).

Sheath : White colour PVC of type ST1 and ST3.

Sizes- 14/40, 23/40 and 40/40.

Colours available: Red + Black, Green + Yellow, Red + Yellow.

*Packing is available in 90 mtr..

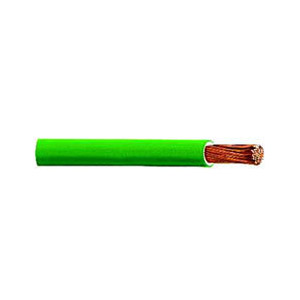

Flexible Copper Single Core Cables

The Flexible Copper Single Core Cables are used for transmission of low voltage signals, electrical motors, DC power transformers, panel boards, battery cables etc. These flexible copper single core cables come with superior flexibility, adequate voltages resistance and are manufactured as per ISO standards. Our cables are soft annealed copper fine wires, bunched together in subunits or stranded bunched groups into a main unit, thus forming a flexible conductor.

Range:- Single Core, Size: 0.5 sq. mm to 630 sq. mm

Application:- Highly flexible conductors with a great variety of industrial use such as cable harnesses, panel wiring and power generation.

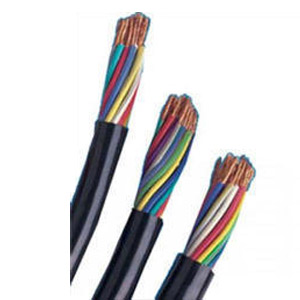

Flexible Copper Multi Core Cables

The Flexible Copper Multi Core Cables are used in machine tools, electrical appliances and control panels. In these cables, the insulated cores are laid up to form the core assembly. The inner cores are coded for the ease of identification as per national/ international coding practices. Here, the sheathing is provided with a specially formulated PVC compound to facilitate not only simplification in stripping, but also withstanding mechanical abrasion capacity while in operations.

Range:- Multi-Core Sheathed Cables

  • 0.5 sq. mm to 4 sq. mm upto 61 cores
  • 6 sq. mm to 35 sq. mm upto 7 cores
  • 50 sq. mm to 300 sq. mm upto 4 cores
